| 4-
Hole Copper Lugs Terminals for Transformers |
|
Material |
Soft
High Conductivity Copper |
|
Size |
300mm2
to 1000mm2 |
|
Finish |
Electrotinned
/ Nickel Plated |
|
Features |
Available
as per Stud hole specifications |
|
|
|
|
| |
|
|
Aluminium Copper Long Barrel Connectors
Ferrules |
| |
|
Material |
Soft
High Conductivity Copper |
|
Size |
300mm2
to 1000mm2 |
|
Finish |
Surface
Passivated |
| |
|
|
|
| |
|
|
Aluminium Long Barrel Cable Lugs |
|
|
Material |
High
Conductivity Aluminium Tube |
|
Size |
35mm2
to 1200mm2 |
|
Finish |
Surface
Passivated |
|
Features |
Connectors
are prefilled with oxide inhibitting
compound & capped at both
ends |
|
|
|
|
| |
|
|
Copper Butt Connectors |
|
|
Material |
Soft
High Conductivity Copper |
|
Size |
300mm2
to 1000mm2 |
|
Finish |
Electrotinned
/ Nickel Plated |
|
|
| |
|
| Copper
High Voltage Through & Oil Stop
Connectors/ Splices Splices |
|
|
Material |
Soft
High Conductivity Copper for splices |
|
Size |
50mm2
to 500mm2 |
|
Finish |
Electrotinned
/ Nickel Plated |
| |
|
|
|
| |
|
| Copper
In Line Connectors With Dimple Ferrules
SPLICES |
|
|
Material |
Soft
High Conductivity Copper |
|
Size |
1.5mm2
to 2000mm2 |
|
Finish |
Electrotinned
/ Nickel Plated |
|
Features |
Connectors
are Provided with a dimple which
acts as a conductor & ensures
conductors are inserted fully |
| |
|
|
|
| |
|
| Copper
Terminals ( Single hole/ Without Hole) |
|
|
Material |
Soft
High Conductivity Copper |
|
Size |
1.5mm2
to 2000mm2 |
|
Finish |
Electrotinned
/ Nickel Plated |
|
Features |
Connectors
are Provided with a dimple which
acts as a conductor & ensures
conductors are inserted fully |
| |
|
|
|
| |
|
| Copper
Weak Back Ferrules |
|
|
Material |
Soft High Conductivity Copper |
|
Size |
16mm2 to 630mm2 |
|
Finish |
Electrotinned / Nickel Plated |
|
|
| |
|
| |
|
| Two-
Hole / Blank Copper Terminals / cable
Lugs Long Palm / Blank Copper Terminals
/ Lugs Long Palm |
|
|
Material |
Soft
High Conductivity Copper |
|
Size |
50mm2
to 1200mm2 |
|
Finish |
Electrotinned
/ Nickel Plated |
|
Features |
Used
when cable run fall short or when
the system is continuously under
vibrations |
|
|
|
|
| |
|

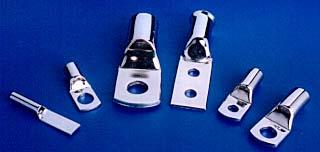

| Copper
Cable Lugs terminals Solderless Lugs |
|
|
Material :High conductivity
seamless copper tube to BS 2874 -C
101ASTM B 152-C11000 for All Copper
terminals Cable lugs solderless crimping
terminals Aluminium terminals
Aluminum lugs.
|
| |
|
Features: We are the first
company in India to introduce bell entry
Copper Lugs terminals to facilitate
easy cable entry. Provided with inspection
window, thus ensuring full conductor
insertion. |
| |
|
Sizes : From 1.5 mm ,
2.5mm 4mm , 6mm,10mm, 16 mm2
,25mm2 , 35mm2 , 50mm2 ,70mm2,
95mm2 , 120 mm2 , 150 mm, 185
mm2 , 240 mm² , 300mm2 , 400mm,
500mm
with different stud hole sizes as required. |
| |
|
Finish :Uniform electro-Tin
plating for operating temperatures
upto 150 °C. For operating temperatures
above 150 °C & upto 350 °C Electrolytic
Nickel plating is suggested
|
| |
|
Note:4 hole Copper terminals
lugs for transformers and long palm
lugs available. Stamped and pressed
lugs also available. |
| |
Copper Inline Connectors Copper Splices
